ISG in-line six-cylinder EHV direct injection engine is a new heavy-duty engine platform developed by Cummins designed to meet the global emission standards and meet Euro IV and Euro V emissions. As well as the development of the world's highest standards for off-road phase IV. ISG is dedicated to providing ideal power solutions for tractors, dump trucks, flatbeds, special vehicles and buses and buses.

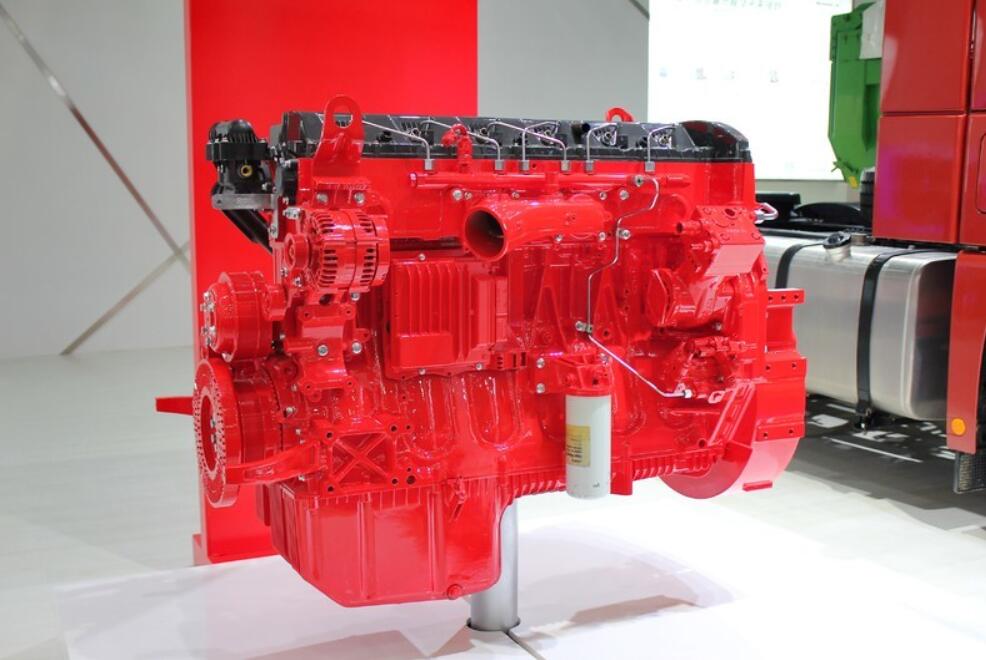

ISG11 ENGINE
|
||
Model |
Peak Torque N.m @rpm |
Power KW(HP) @RPM |
ISGe4 310 |
1400 @ 1000 |
228 (310) @ 1900 |
ISGe4 330 |
1700 @ 1000 |
243 (330) @ 1900 |
ISGe4 350 |
1800 @ 1000 |
257 (350) @ 1900 |
SPECIFICATIONS |
||
Emission | EURO IV | |
Engine Model | ISG11 | |
Displacement | 10.5L | |
Power | Max 350 hp | |
Torque | Max 1800 N.m | |
Length | 1460mm | |
Width | 895mm | |
Height | 1050mm | |
Weight | 792kg | |
AFTERTREATMENT
|
||
Length | 600mm | |
Width | 450mm | |
Height | 593mm |
