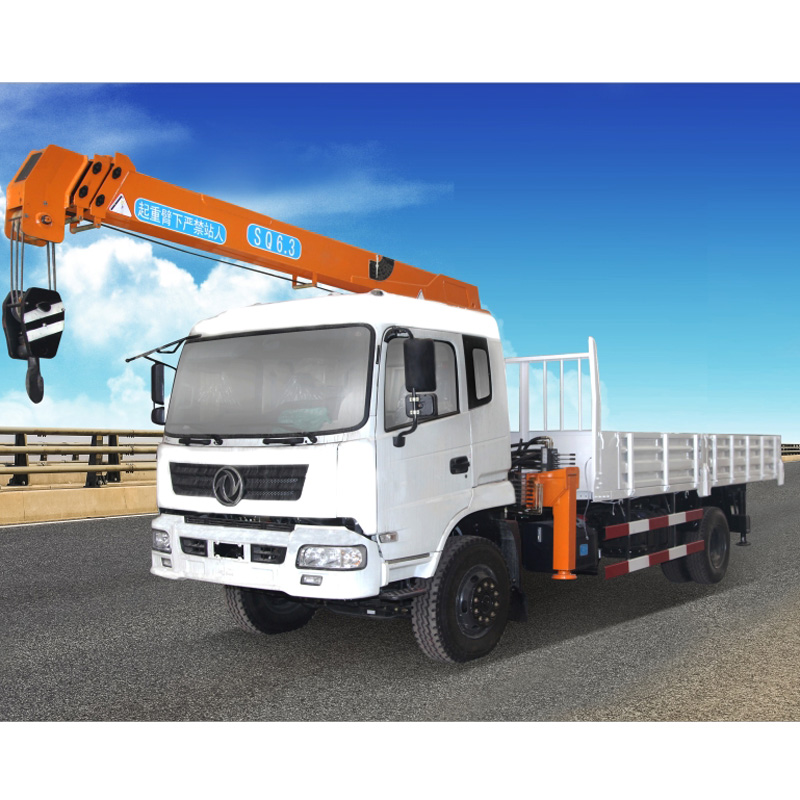

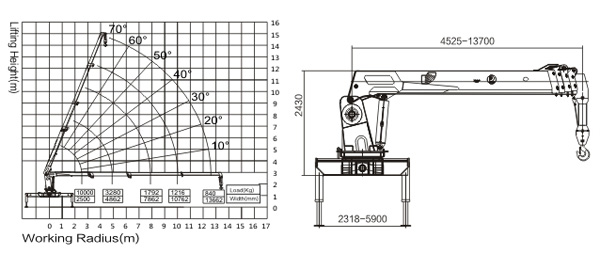

| Model | SQ10S4 Telescopic boom 10T |
| Max.lifting Moment(kn.m) | 250 |
| Max.lifting Capacity(T) | 10 |
| Max.lifting Height(m) | 15.2 |
| Max.Working Radius(m) | 13.7 |
| Boom Section | 4 stages |
| Slewing Angle | 360*Continuous |
| Rated Pressure(Mpa) | 20 |
| Rated Oil Flow(L/min) | 63 |
| Outrigger Span(mm) | 2318-5900 |
| Crane Weight(kg) | 3800 |
| Installation Space(mm) | 1400 |
.jpg)
.jpg)
.jpg)
