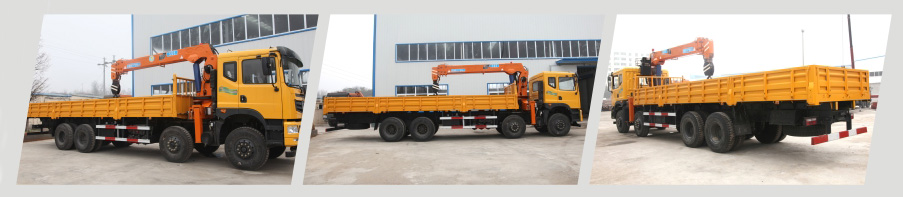

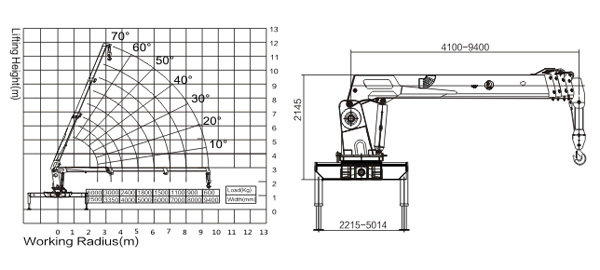

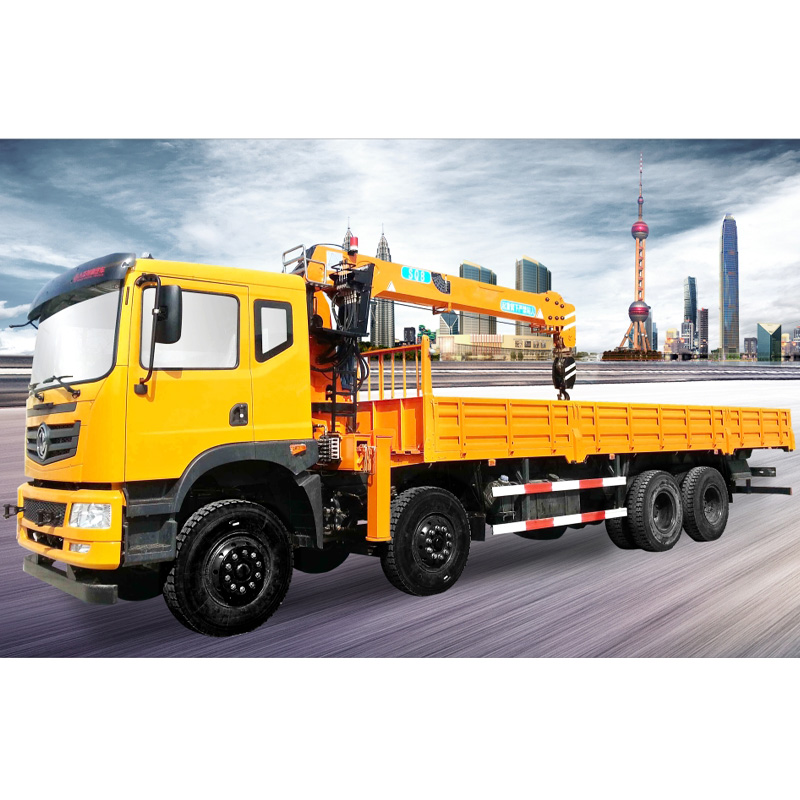

| Model | SQ5S3 Telescopic boom 5T |
| Max.lifting Moment(kn.m) | 125 |
| Max.lifting Capacity(T) | 5 |
| Max.lifting Height(m) | 11 |
| Max.Working Radius(m) | 9.4 |
| Boom Section | 3 stages |
| Slewing Angle | 360*Continuous |
| Rated Pressure(Mpa) | 16 |
| Rated Oil Flow(L/min) | 50 |
| Outrigger Span(mm) | 2215-5014 |
| Crane Weight(kg) | 2000 |
| Installation Space(mm) | 950 |
.jpg)
.jpg)
.jpg)
.jpg)
