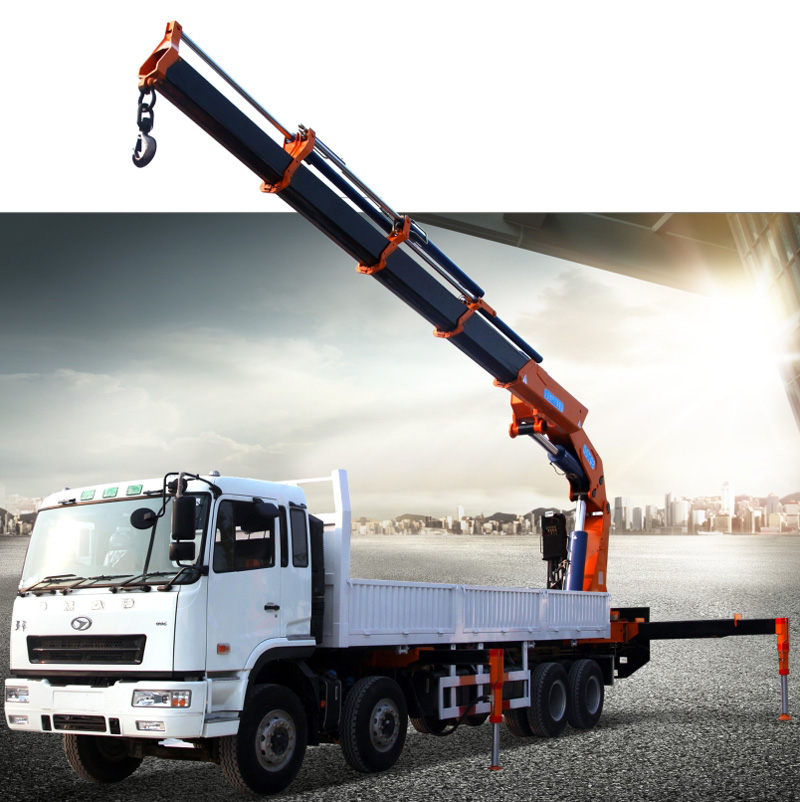

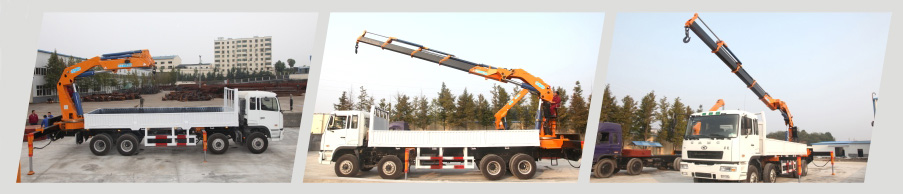

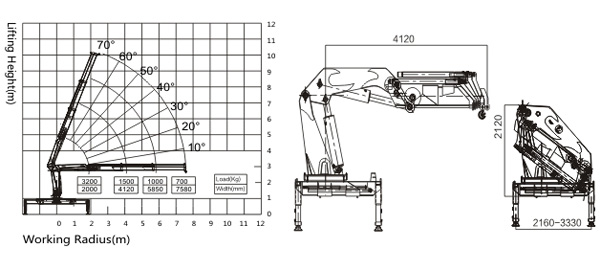

| Model | SQ80ZB2 knuckle boom 3.2T |
| Max.lifting Moment(kn.m) | 80 |
| Max.lifting Capacity(T) | 3.2 |
| Max.lifting Height(m) | 10.5 |
| Max.Working Radius(m) | 7.58 |
| Boom Section | 2stages |
| Slewing Angle | 360*Continuous |
| Rated Pressure(Mpa) | 28 |
| Rated Oil Flow(L/min) | 30 |
| Outrigger Span(mm) | 2160-3330 |
| Crane Weight(kg) | 1500 |
| Installation Space(mm) | 850 |
.jpg)
Description
.jpg)
.jpg)
.jpg)
JULY main products:
DCEC DONGFNEG CUMMINS diesel engine parts
---4BT 6BT 6CT ISBE ISDE ISLE L
FOTON CUMMINS engine part
--- ISF2.8 ISF3.8
CCEC CHONGQING CUMMINS engine parts
---NTA KTTA NT855 M11 QSB QSL QSZ
DONGFENG truck parts
DFM: L375 DFL4251 DFL3251 DFL4240 etc. heavy truck parts
DFAC: DFA1069 CAPTAIN DUOLIKA JINBA XIAOBAWANG KANGBA Dongfeng Star etc. light truck parts
DFSK: C37 V27 V29 K17 K07 K01 etc.mini-bus parts
DCD DONGFENG CHAOCHAI diesel engine parts
CYQD32 CY4102BZL CY6102 Y102BG CY4D
Diesel Engine Part common rail injector nozzle,BOSCH injectors ,sensors, FLEETGUARD filters, HOLSET turbochargers, etc.
